AC85 - 265V UV Adhesive Curing Equipment Light Machine For Screen Printing

AC85 - 265V UV Adhesive Curing Equipment Light Machine For Screen Printing
AC85 - 265V UV Adhesive Curing Equipment Light Machine For Screen Printing

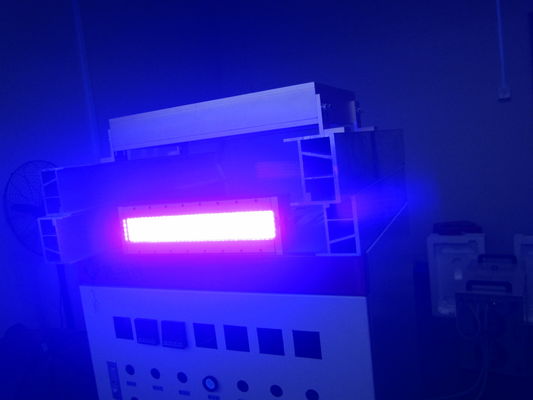

Grande immagine :  AC85 - 265V UV Adhesive Curing Equipment Light Machine For Screen Printing

Dettagli:
Luogo di origine: Cina
Marca: CG
Certificazione: CE*RoHS
Numero di modello: CG-CT10-1000*45-6000A/C.
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1Set
Prezzo: 8000-9500usd 1 set
Imballaggi particolari: Cassa in legno
Tempi di consegna: 10-15 giorni lavorativi
Termini di pagamento: L/c, t/t
Capacità di alimentazione: 10 set/giorno

AC85 - 265V UV Adhesive Curing Equipment Light Machine For Screen Printing

descrizione
Parole chiave: Soluzione UV curante Energia: 6000W
Tensione di ingresso: AC85-265V Lunghezza delle onde: 395 nm/365 nm
Modo di raffreddamento: Raffreddamento ad acqua Intensità UV: 18W/CM2
Garanzia: 2 anni Pacchetto: Cassa in legno
Evidenziare:

UV adhesive curing machine

,

screen printing UV light

,

AC85-265V UV curing equipment

Curing Machine For Screen Printing Uv Adhesive Curing Equipment Light Curing System ​


UV Curing Solution Description


UV LED curing lamp technology is a cutting-edge, solid-state method that utilizes precise ultraviolet radiation to rapidly cure UV-sensitive materials such as resins, inks, varnishes, adhesives, and coatings, delivering superior performance in modern industrial processes.


UV Curing Solution Datasheet


 Model



CG-CT10-1000*45-6000A/C lamp color

Rose golden


 Power


6000W

Chip brand

LG/Seoul


Input voltage


 AC85-265V

Wave length

365/385/395/405nm


Application


UV ink/vanish/coating /adhesive curing

Life span

20000H


Cooling way


Water cooling

Emitting window size

customized


UV intensity


18W/CM2

Dimmable

0%-100%


Best emitting distance


30-50mm  Package wooden case


UV Curing Solution Advantages

  1. Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
  2. Environment friendly , No mercury. No ozone making and VOC discharge.
  3. NO warm-up , turn on/off instantly.
  4. Low temperature, can be used for PE and film ink cuing .
  5. Long lifespan, 20000hours .

AC85 - 265V UV Adhesive Curing Equipment Light Machine For Screen Printing 0






AC85 - 265V UV Adhesive Curing Equipment Light Machine For Screen Printing 1






UV Curing Solution  FAQ:


Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.


Q2: What’s your led brand ?

A2:LG/Seoul


Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz


Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling


Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%


Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.


Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
